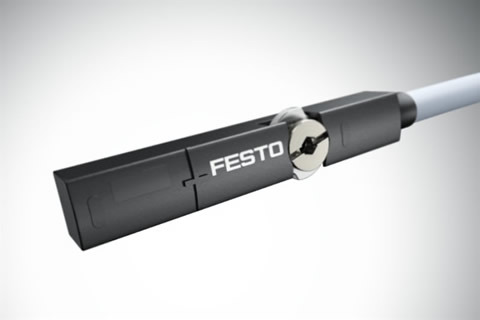

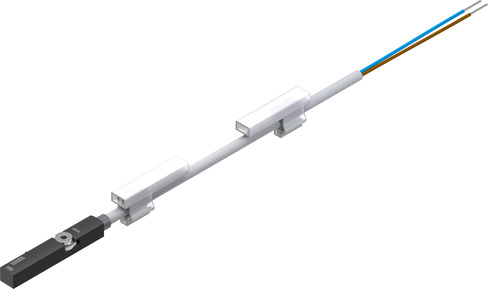

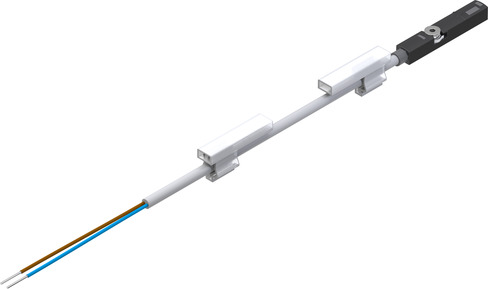

Proximity sensor SME-8M-DS-24V-K-2,5-OE
Magnetic Reed cylinder switch for T-slot, can be inserted from the top.
SME-8M-DS-24V-K-2,5-OE Part no. 543862
- Measuring principle: magnetic reed
- Variants suitable for use with energy chains and robots
- Screw-clamped or clamped in slot, can be inserted into the slot from above or lengthwise
- LED switching status indication
- Cable length 0.3, 2.5, 5, 7.5, 0.2 … 10 m
| Cable | 551386 SIES-8M-PS-24V-K-7,5-OE |
| 551391 SIES-8M-PO-24V-K-7,5-OE | |
| 551396 SIES-8M-NS-24V-K-7,5-OE | |
| 551401 SIES-8M-NO-24V-K-7,5-OE | |
| Cable with plug | 551387 SIES-8M-PS-24V-K-0,3-M8D |
| 551388 SIES-8M-PS-24V-K-2,5-M8D | |
| 551389 SIES-8M-PS-24V-K-5,0-M8D | |
| 551390 SIES-8M-PS-24V-K-10-M8D | |
| 551392 SIES-8M-PO-24V-K-0,3-M8D | |
| 551393 SIES-8M-PO-24V-K-2,5-M8D | |
| 551394 SIES-8M-PO-24V-K-5,0-M8D | |
| 551395 SIES-8M-PO-24V-K-10-M8D | |
| 551397 SIES-8M-NS-24V-K-0,3-M8D | |
| 551398 SIES-8M-NS-24V-K-2,5-M8D | |
| 551399 SIES-8M-NS-24V-K-5,0-M8D | |
| 551400 SIES-8M-NS-24V-K-10-M8D | |
| 551402 SIES-8M-NO-24V-K-0,3-M8D | |
| 551403 SIES-8M-NO-24V-K-2,5-M8D | |
| 551404 SIES-8M-NO-24V-K-5,0-M8D | |
| 551405 SIES-8M-NO-24V-K-10-M8D |
