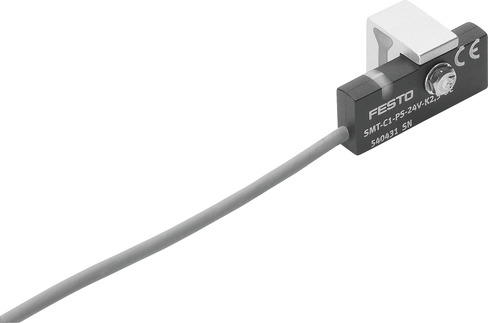

Proximity sensor
SMT-C1-PS-24V-K-5,0-OE 571339
Type codeSMEO
DesignBlock design
Symbol00991148
CertificationRCM compliance mark
CE marking (see declaration of conformity)As per EU EMC directive
Note on materialsFree of copper and PTFE
Measuring principleMagnetic reed
Ambient temperature-20 °C … 70 °C
Switching outputContact-based, bipolar
Switching element functionN/O contact
Reproducibility of switching value+/- 0.1 mm
On time≤ 0.5 ms
Max. output current1000 mA
Min. switching capacity AC27 VA
Max. switching capacity DC27 W
Short-circuit protectionno
Overload protectionNot available
Operating voltage range AC12 V … 27 V
DC operating voltage range12 V … 27 V
Reverse polarity protectionno
Electrical connectionPlug
M8x1
3-pin
Type of mountingWith accessories
Mounting positionAny
Product weight20 g
Housing materialPET
Switching status indicationLED yellow
Ambient temperature with flexible cable installation-5 °C … 70 °C
Degree of protectionIP67
